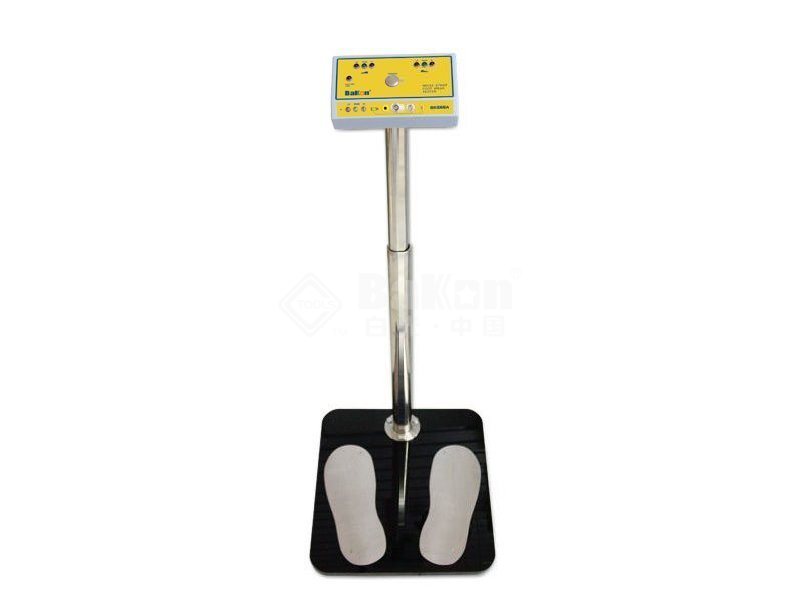

BAKON BK698A High quality of SURPA auto esd human tester made by Shenzhen Bakon

  • Place of Origin: China
  • Brand Name: BAKON
  • Model Number: BK698
  • Power: Electronic
  • Model: FBK698A
  • Cooperate environment: 0-31℃, 0%--90%RH
  • Testing height range: 900-1470mm
  • Shoes test: 750kΩ--100MΩ
  • Wrist strape test: 750kΩ--10MΩ
  • Indicator light(Shoes): 750kΩ--100MΩ(Green) pass/>1100MΩ or <740kΩ(Red) FailHI/LO
  • Dimension: Tester:142.5*82*39mm, stand:400*250*800mm, hopping step: 400*450mm
Quantity:

Product Description

High quality of SURPA made by Shenzhen Bakon

Features

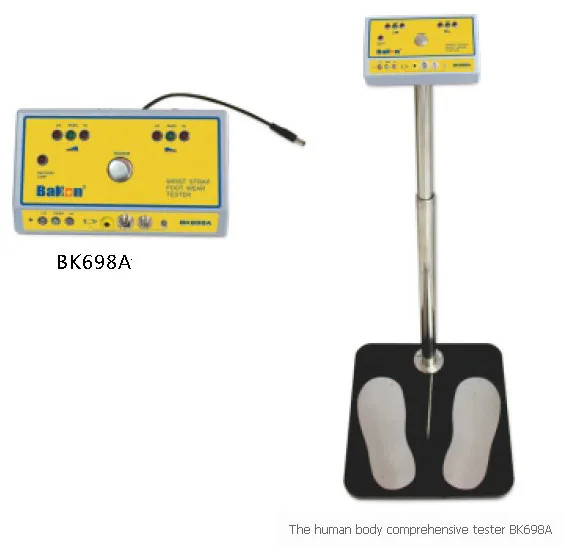

♦ BK698A feet body Tester is for testing the human body comprehensive resistance(include the resistance of the human body,wrist strape,shoes etc) Pre-emitting diode display with intuitive design.

♦ The teter can test and warn when the human body comprehensive resistance more than 10^9 or less than 10^5,

♦ Feet body Tester configured 750kΩ - 10MΩ circuit (used to test wrist band) and 750kΩ - 100MΩ circuit (for testing shoes), this instrument is ideal for testing the wrist strap and shoe
♦ This product can quickly test ESD equipment, three separate devices (wrist band, left shoes and right shoes) a complete ESD testing;

3 respectively show three states of each

LO (below the set value);
Pass (within the set range);
HI (above the setpoint) alarm function

Specifications

Model FBK698A
Cooperate environment 0-31℃, 0%--90%RH
Testing height range 900-1470mm
Shoes test 750kΩ--100MΩ
Wrist strape test 750kΩ--10MΩ
Indicator light(Shoes) 750kΩ--100MΩ(Green) pass/>1100MΩ or <740kΩ(Red) FailHI/LO
Indicator light(Wrist strape) 750kΩ--10.5MΩ(Green) pass/>11.5MΩ or <740kΩ(Red) FailHI/LO
Dimension Tester:142.5*82*39mm, stand:400*250*800mm, hopping step: 400*450mm
G.W. 5.5KG

Why choose BAKON?

1.We are most professional manufacturer of soldering station and ESD products.

2.Our company has passed ISO9001.

3.with more than19 years experience, cooperate with Gree Electric since 2012.

4.Have global users in many countries such as Korea,Vietnam,India,Mexico and Brazil etc.

5.High quality & competitive price.

6.Most products have CE certificates.

7.100% NEW from BAKON factory.

8.100% QC inspect before shipment.

9.OEM is acceptable.

Related Products

Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.

Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

Imported chip capacitors to form high-quality circuit boards.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage
  1. Direct Manufacturer, 20 Years History, No.2 in China;
  2. Cooperate with Gree Electric From Year 2012.
  3. OEM or ODM service provided
  4. Certificate: CE/RoHS/ISO9001/SGS;
  5. Strict Quality Control: Pre-test, Casual inspection, Inspection of finished product;
  6. Factory D&R / production/ sales/ and sales service together.
  • delivery

We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.
