BAKON GB-1L Brushless electric screwdriver low torque series

  • Place of Origin: Guangdong, China
  • Brand Name: BAKON
  • Model Number: GB-1L
  • Power Source: Electricity
  • Rated Voltage: 25V
  • Frequency: 1000
  • Max. Torque: 1000

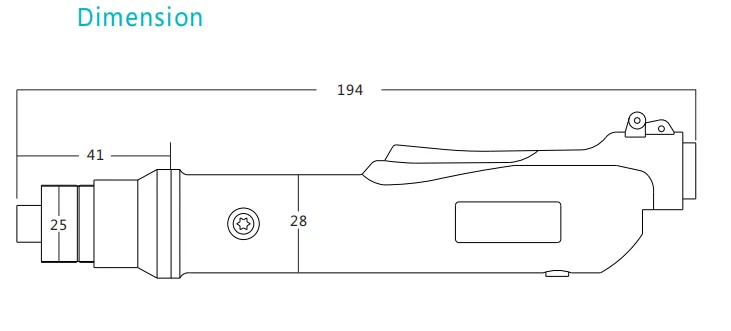

  • Dimensions: 194*28
  • Weight: 218g
  • Product Name: Electronic Screwdriver
  • Color: Black
  • Feature: Adjustable Speed
  • Voltage: 25V
  • Torque Range: 0~1000
  • Warranty: 1 Year
Quantity:

BAKON GB-1L Brushless electric screwdriver

Technical parameter
Aircraft type
GB-1L
GB-2L
GB-3L
Input Voltage
25V

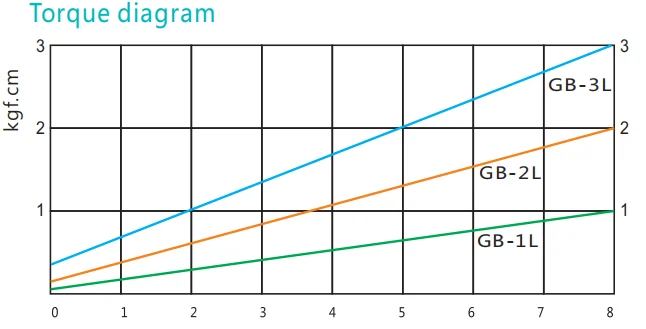

Torque range
Kgf.cm
0.1-1
0.2-2
0.3-3
Lbf.in
0.087-0.868
0.174-1.736
0.260-2.604
N.m
0.010-0.098
0.020-0.196
0.029-0.294
Torque accuracy
±1%
±1%
±1%
Torque adjustment
Stepless
Stepless
Stepless
Torque adjustment mode
Back stop screw
Back stop screw
Back stop screw
Start the way
Hand press type
Hand press type
Hand press type
Idling speed (R.P.M)
Slow series
0~1000
0~300

0~1000

0~300
0~1000
0~300
Weight (g)
218
218
218
No load current (A)
0.3A
0.3A
0.3A
Applicable starter
Φ4
Φ4
Φ4
Applicable screw
diameter(mm)
Mechanical tooth
1.0-2.0
1.0-2.3
1.0-2.3
Self-tacking tooth
1.0-1.7
1.0-1.7
1.0-1.7

Product features
  • Imported brushless motor, strong performance, high stability and long ser vice life.
  • Low vibration, low noise, low electromagnetic interference, comply with environmental requirements,especially applicable to dustfree working environment.
  • The internal stop device adopts magnetic induction system, with high sensitivity, instantaneous braking, low impact force, and long-term use not easily damaged.
  • The newest power supply design, break through the traditional volume big, the power consumption big drawback, use medium is lighter, more convenient, apply to 100V ~
    250V working environment.
  • The power line is designed with silicon wire anti-hardening three-core wire, and the ser vice life is too long.
  • Torque setting precision torque, high precision, screw assembly work is particularly suitable for mobile phone, digital cameras and other high precision products.
  • The outer type is designed according to the ergonomic grip, the shell is made of high-grade PC, the volume is exquisite, the weight is light, the impact resistance, the use
    is comfortable, the long time use is not easy to fatigue, raises the production efficiency.
  • Speed 0~1000rpm can be adjusted to meet your different needs.
  • The products are fully functional and meet all kinds of industrial needs.

Related Products

Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.

Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

Imported chip capacitors to form high-quality circuit boards.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage
  1. Direct Manufacturer, 20 Years History, No.2 in China;
  2. Cooperate with Gree Electric From Year 2012.
  3. OEM or ODM service provided
  4. Certificate: CE/RoHS/ISO9001/SGS;
  5. Strict Quality Control: Pre-test, Casual inspection, Inspection of finished product;
  6. Factory D&R / production/ sales/ and sales service together.
  • delivery

We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.

Finally, finally, welcome
