BAKON GES-5L LOW torque power screwdrivers
Technical parameter
| Aircraft type | GES-3L | GES-5L | GES-12L | |
| Input Voltage | 30V | |||

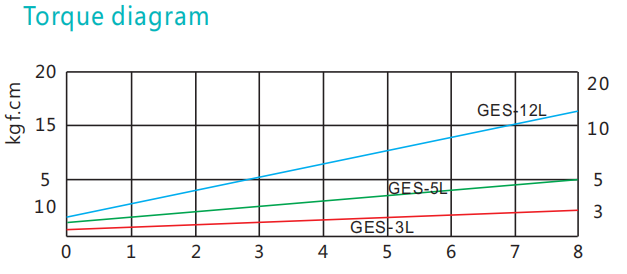

| Torque range | Kgf.cm | 0.3-3 | 0.5-5 | 2-12 |
|
| Lbf.in | 0.260-2.604 | 0.434-4.340 | 1.736-10.416 |
|
| N.m | 0.029-0.294 | 0.049-0.490 | 0.196-1.176 |
| Torque accuracy | ±3% | ±3% | ±3% | |
| Torque adjustment | Stepless | Stepless | Stepless | |
| Torque adjustment mode | Internal debugging | Internal debugging | Internal debugging | |
| Start the way | Hand press type | Hand press type | Hand press type | |
| Idling speed (R.P.M) Slow series | 200~1000 | 200~1000 | 200~1000 | |
| Weight (g) | 350 | 350 | 350 | |
| No load current (A) | 0.3A | 0.3A
| 0.3A
| |
| Applicable starter | Φ4/5 | Φ4/5 | Φ4/5 | |
| Applicable screw diameter(mm)
| Mechanical tooth | 1.0-2.3 | 1.0-2.6 | 2.0-3.0 |
| Self-tacking tooth | 1.0-2.0 | 1.0-2.3 |
2.0-2.5 | |
Product features
· Conical design, good line of sight, easy to disassemble and install.
· The torque adjusts the patent design, the professional tool adjusts the torque, the torque setting is more accurate, the torque precision is higher. (domestic first technology patent)
· The internal stop device adopts magnetic induction system, with high sensitivity, instantaneous braking, low impact force, and long-term use not easily damaged.
· The gear assembly is made of high quality alloy steel, which is more durable and stable.
· Low vibration, low noise, low electromagnetic interference, comply with environmental requirements, especially applicable to dustfree working environment.
· The outer type is designed according to ergonomic grip, small volume, light weight, impact resistance,comfortable use, long time use not easy to fatigue, improve production efficiency.
· The speed of 0-1000rpm can be adjusted to suit your different needs.
In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.
Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.
Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.
Imported chip capacitors to form high-quality circuit boards.
We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.
Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.
The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.
