BK3600 High frequency wire feeder solder & lead-free soldering station for factory soldering

  • Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use
  • After Warranty Service: No service
  • Local Service Location: None
  • Showroom Location: None
  • Video outgoing-inspection: Provided
  • Machinery Test Report: Provided
  • Marketing Type: Hot Product 2019
  • Warranty of core components: 1 Year
  • Core Components: PLC
  • Condition: New
  • Place of Origin: Guangdong, China
  • Brand Name: BAKON
  • Input Voltage: AC220V /AC110V
  • Output Temperature: (50~600)℃
  • Temperature Stability: ±2℃(No load and air flow)
  • Output Power: 150W
  • Dimensions: 300*285*160mm
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Free spare parts, Online support
  • Key Selling Points: Easy to Operate
  • Weight (KG): 7 KG
  • anti-static: ESD safe designed
  • temperature: adjustable
  • temperature range: 200~500℃/392~896℉
  • Power consumption: 150W
  • Voltage: AC220 V 50 HZ / AC110V 60 HZ
  • Temperature stability: ±2℃
  • feeding speed: (7~65)mm/s
  • feeing interval: (0~10)s
Quantity:

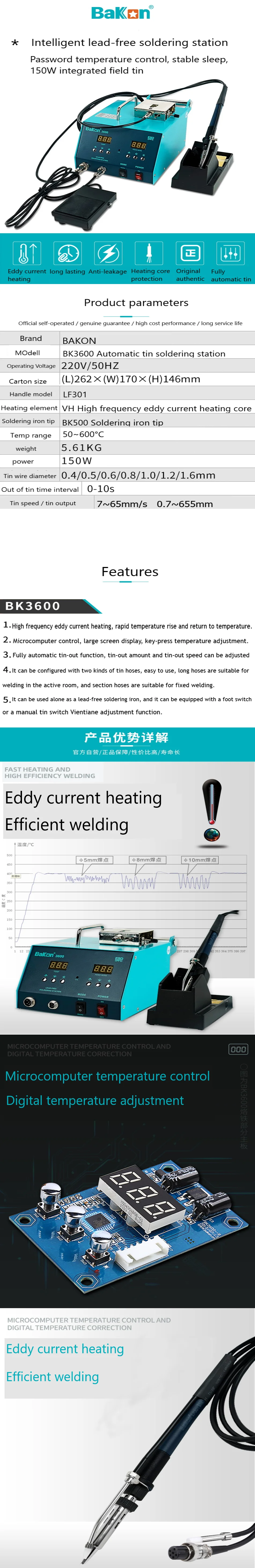

BK3600 High frequency wire feeder solder & lead-free soldering station for factory soldering

Features:

1. High frequency current heating; Rapid heating and quick thermal recovery, suitable for lead free soldering. Many types of tips are available for replacements.

2. Micro computer control; set temperature only by pressing keys; temperature calibrated digitally; more functions available, such as auto sleeping, auto shut-off.

3. Auto and manual soldering wire feeding are optional. Using Imported motor, feeding speed, feeding volumes, interval time could be regulated.

4. Two types of feeding hose optional, easy to use. Long hose suitable for fixed soldering.

5. Pedal switch or manual switch to choose from Soldering direction may be changed as needed and soldering can be agile and convenient.

Specification:

Model

BK3600

Temperature Range

50~600℃

Temp .Stability

±2℃

Tin Adjustable

YES

Input Voltage

AC220V

Max Power

150W

Tip to Ground Resistance

<

Tip to Ground Potential

<2mV

Feeding Speed

Appr.14mm/s~ 35mm/s

Feeding Volume (Auto Mode)

0.5 ~ 123mm

Feeding Interval Time

0 -3.5s

Diamond of wire usable

0.4, 0.5,0.6,0.8,1.0,1.2,1.6

Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.

Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage

Direct Manufacturer, 20 Years History, No.2 in China;

Cooperate with Gree Electric From Year 2012.

OEM or ODM service provided

Certificate: CE/RoHS/ISO9001/SGS;

Strict Quality Control: Pre-test, Casual inspection, Inspection of finished product;

Factory D&R / production/ sales/ and sales service together.

Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

Imported chip capacitors to form high-quality circuit boards.

  • delivery

We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.

Finally, finally, welcome
