ESD-IOT6102 low pressure ion air blower for eliminate static electricity

  • Rated Voltage: 120V/60HZ
  • Place of Origin: Guangdong, China
  • Brand Name: BAKON
  • Model Number: ESD-IOT6002
  • Application: Fan Blower
  • Pressure: Low Pressure
  • Power Source: Electric Blower
  • Product name: Fan Air Blower
  • Warranty: 1 Year
  • Usage: Static Eliminator
  • Function: Internet of Things
  • Air Volume: 91CFM
  • Noise: 60db
Quantity:

ESD-IOT6102 Static Eliminator

Product specification

Name

Intelligent Direct current air blower

Input voltage

AC 230V/50HZ

Power

45W

Wind flow

Max95CFM(adjustable)

Ion balance degree

0±5V

Static elimination time

≤1s

Effective coverage area

70x90cm²

Outer volume

600(L)x170(W)x75(H)mm

Weight

4.5kg

Working humidity

<75%RH

Working temperature

-5~45℃

Structure design feature

  • The front cover of the product’s body adopts double layer detection and isolation design,this design can detect the unbalance voltage and isolate the signal of external interference source.
  • The machine design adopt direct current blower preposition,high voltage
  • Launcher postposition design layout,this design can makes the high
    pressure ionized positive and negative ions has better effect of static
    elimination after blower stir fully mixed.
  • The back cover of device adopts the buckle prevention design,this design can disassemble the protective cover easily,instantly clean the high pressure emit needle and fan blade.
  • The built-in design has a circuit switch,cut off the power supply immediately after removing the protective cover,the maintainer is protected safely from high voltage shocked.
  • The emit needle design is easy to replace pull out plug type, the emit needle can be replaced easily and conveniently without launcher replacement.simultaneously save the maintain cost.
  • Automatic clean device, maintain the ion emit needle easily.
  • Wrieless notworking function.

Electronic technical performance

  • Maintenance early warning function, when the ion concentration is too low, or due to dust caused by the self-balancing circuit adjustment is too large, please prompt maintenance.
  • LCD display:the interface is clear, bright, concise and intuitive, the ion balance degree can be monitored and displayed in real time, and the multi-order menu can be operated manually, fast and convenient.
  • Wind flow adjustment:adopt high quality double roller DC fan,Long life, stable air volume, relatively small noise, air volume can be set 1-5 through the software, adjust the different air volume according to the scene need.
  • Automatic alarm technology for unbalance:the alarm threshold voltage can be set manually.
  • When the ion balance voltage is unbalance and exceeds the set threshold voltage, the ion blower will
    automatically alarm.
  • Password protection function technology:default password is “000”,the parameter are set and cannot changed by non-relevant personal.
  • Unique amendment techniques of ion self-balance voltage, the monitor and test function for balance voltage in air inlet (5MM)
  • The community technology of multiple computer online,humanize operation interface,can communicate with multiple computer online(real time monitoring the PC communication),display various parameters of ion balance degree on PC computer

Electrostatic eliminate performance

Show a typical example below:The aluminum plates square is 150mmx*150mm,its amount of charge is +1000V,electrostatic elimination(20pF) (Max wind volume setting of blower)

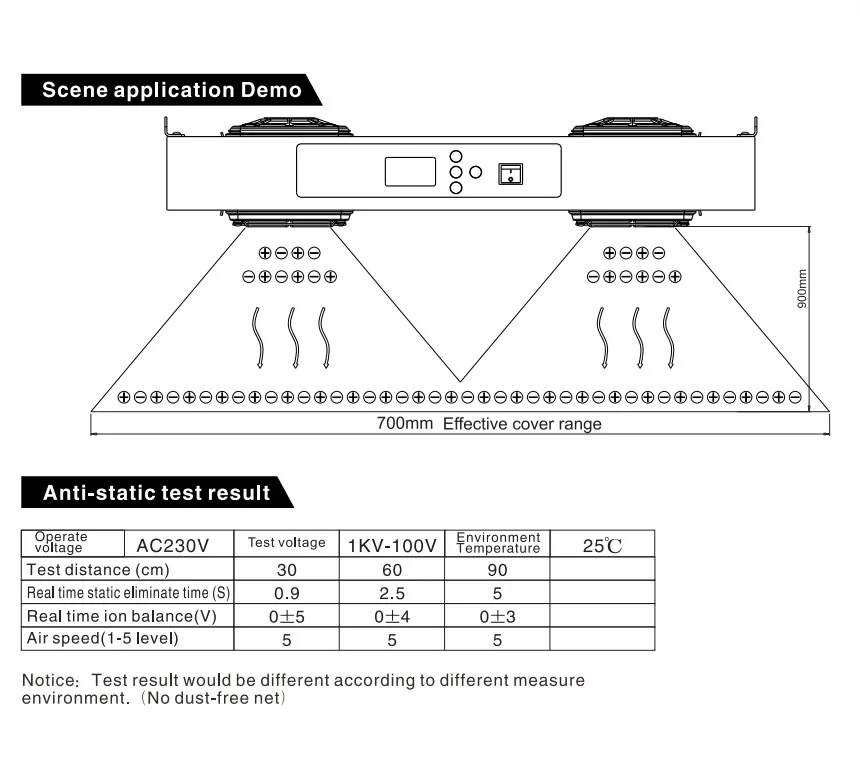

The area of electrostatic elimination

The below illustration displays the relationship between both:The static elimination of target project from +1000V to +100V ,the time take and the distance from target project to static elimination blower.

Electrostatic eliminate time

The right illustration displays the relationship between both:The time required to remove static electricity from the target object with +1000V at the maximum air volume 300mm away from the electrostatic elimination fan, and the electric quantity

Related Products

Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.

Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

Imported chip capacitors to form high-quality circuit boards.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage
  1. Direct Manufacturer, 20 Years History, No.2 in China;
  2. Cooperate with Gree Electric From Year 2012.
  3. OEM or ODM service provided
  4. Certificate: CE/RoHS/ISO9001/SGS;
  5. Strict Quality Control: Pre-test, Casual inspection, Inspection of finished product;
  6. Factory D&R / production/ sales/ and sales service together.
  • delivery

We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.
