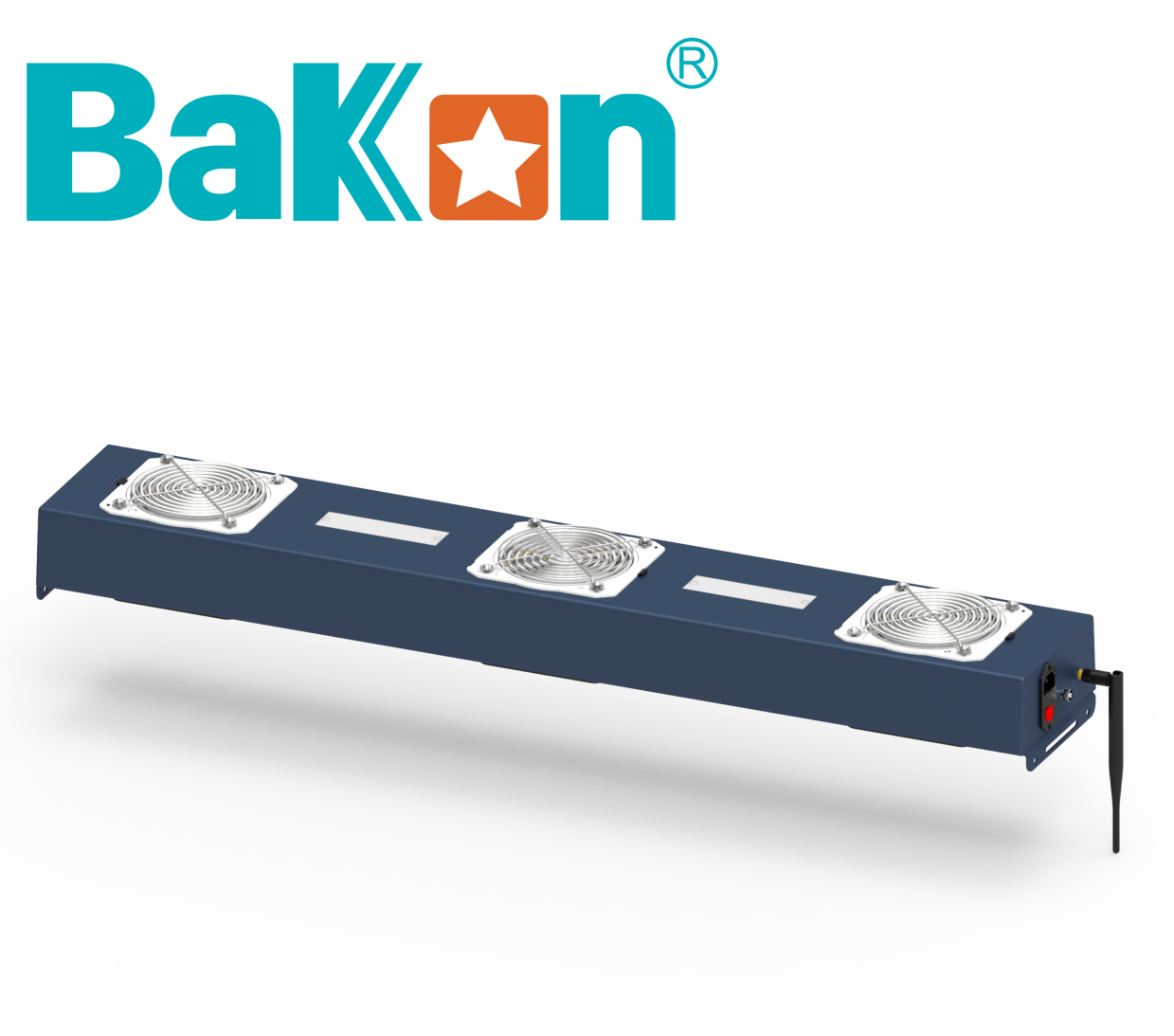

ESD-IOT6203 Protect electronic components from being damaged by static electricity

  • Rated Voltage: 120V/60HZ
  • Place of Origin: Guangdong, China
  • Brand Name: BAKON
  • Model Number: ESD-IOT
  • Application: Fan Blower
  • Pressure: Low Pressure
  • Power Source: Electric Blower
  • Product name: Ionizing Air Blower
  • WEIGHT: 7.8KG
  • Voltage: 110V/220V
  • Feature: Long Life
  • Size: 940*165*94
  • Warranty: 1 Year
Quantity:

ESD-IOT6203

Specfications

Model

U303

Name

Intelligent Anti-dust And Hihg Efficiency Static Rliminator

Input voltage

AC230V/50HZ

Power

75w

Single fan air volume

Max145CFM(adjustable)

Ion balance

0±15V

Elimination times

≤1s(30cm)

Effective coverage area

150*120mm

Working hunmidity&temperature

≤85%RH,-5-45℃

Size

151*94*233

Weight

about7.8kg

Features

Features in structure

1. All detachable parts,easy to maintenance and replace parts.

2. Plug type metal pre-cover,it can inspect the ion balance and isolate potential interference signal.

3. Detachable ion launcher,easy to maintenance and replace parts.

4. Ion launcher is in the front of the fan that can improve the elimination efficiency.

5. Fully automatic cleaning device with Regular time setting,which can reduce the dust of ion needle.

6. U301E heating function,integrated heating technology,safe and efficient.

7. Plug type end cover,rasy to maintenance and replace parts.

Features in electronic design

1. LCD display:Bright contrast,visualize,display ion balance and working time,menu functions.

2. Multi-computer computer online comminication (communication with the PC real elbow monitoring),shows the ion balance and other parameters of each machine on the PC.

3. Auto inspection&work condition jusgement function:auto inspecition to work conditions and faulty and warning&alarm would be given.

4. Large air volume stepless wind adjustment technology:use efficient DC fan which can occur a wide range of strong airflow(1.5m),air volume levels can be set on PCmonitor,air level from SP1-SP4,HP5(big volume but a little noise).

5. Real-time ion balance monitoring of all fans.

6. Auto warning function of high ion balance:the ion balance could be set manually,once it is out of the standard ion balance,a warning will be given.(the display flashes,the display real time ion balance,beep alarming.

7. Password lock protection function:Password setting function could aviod unauthorized setting.(original password :000)

8. Humiture would be showde on display,only for reference.

9. Working temp>28degrees.Heating functions is forbidden.Working temp. 35degrees,auto inspection function is forbidden while working humidity>70%RH.

Related Products

Company Information

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.
In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.
In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.
Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.
The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.
Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Certifications

We have passed the GB/TI9001-2016/ISO9001-2015 international quality management system and our products have passed the CE certification,SGS certification,ATC certificatiom and so on.

Our Services

Each of our products will be tested, the initial test passes, then aging, and finally test again.So if you find any traces of items used, please feel free to use, if you mind, we can talk about other options in detail.

Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price.We have professional engineers who can meet your customized requirements.

Imported chip capacitors to form high-quality circuit boards.

  • our team
  1. Our R & D team has more than 20 people. Reasonable division of labor, so we are more professional.
  2. Our sales team has more than 30 people, follow up at any time, and quickly solve your problems.
  3. Similarly, we have more than 80 production front-line staff, no matter how big the order, we will be able to ship on time.
  4. You don't need to worry about quality issues, because our quality control staff exceeds 10 people. From material to shipment, control layer by layer, resolutely ship all excellent products.
  • our advantage
  1. Direct Manufacturer, 20 Years History, No.2 in China;
  2. Cooperate with Gree Electric From Year 2012.
  3. OEM or ODM service provided
  4. Certificate: CE/RoHS/ISO9001/SGS;
  5. Strict Quality Control: Pre-test, Casual inspection, Inspection of finished product;
  6. Factory D&R / production/ sales/ and sales service together.
  • delivery

We can ship within 7 days within 100pcs.More than 1000pcs need to be shipped within 45 days after payment.If you have other requirements, everything can be discussed.

  • After-sales service

Taking into account transportation issues, if there is a bad mail to us, you will spend a lot of transportation costs. So we will provide technical support and online communication.And we don't guarantee parts that are easy to wear, it is better to: soldering iron head, etc.Our warranty period is 1 year.

The last is the price, if you buy enough, we will give you a certain discount. For example, 50pcs, 100pcs unit price is different.
