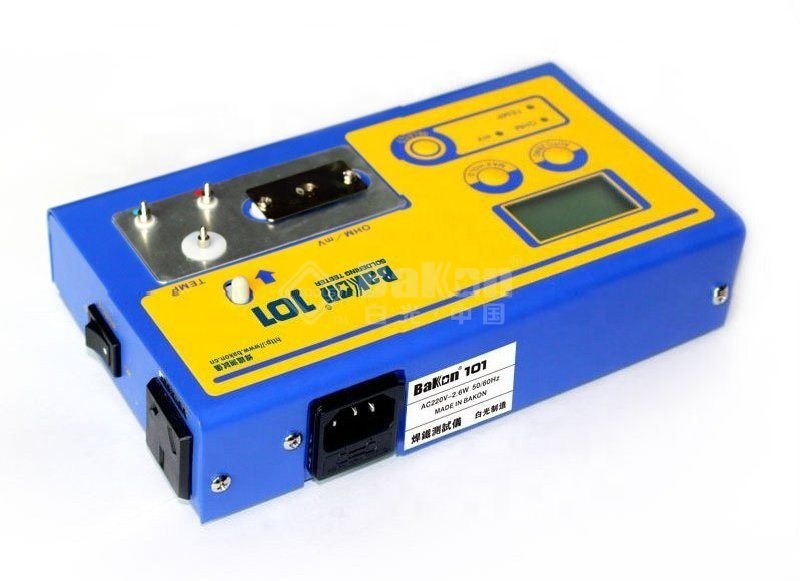

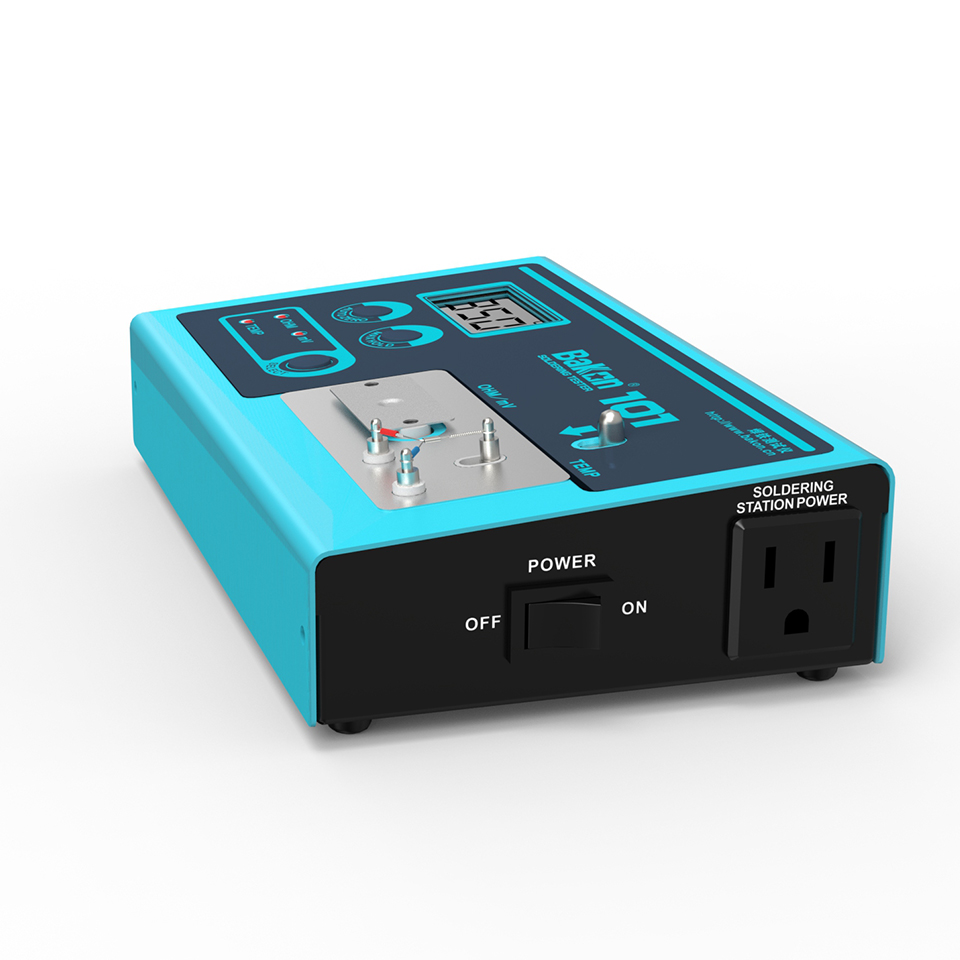

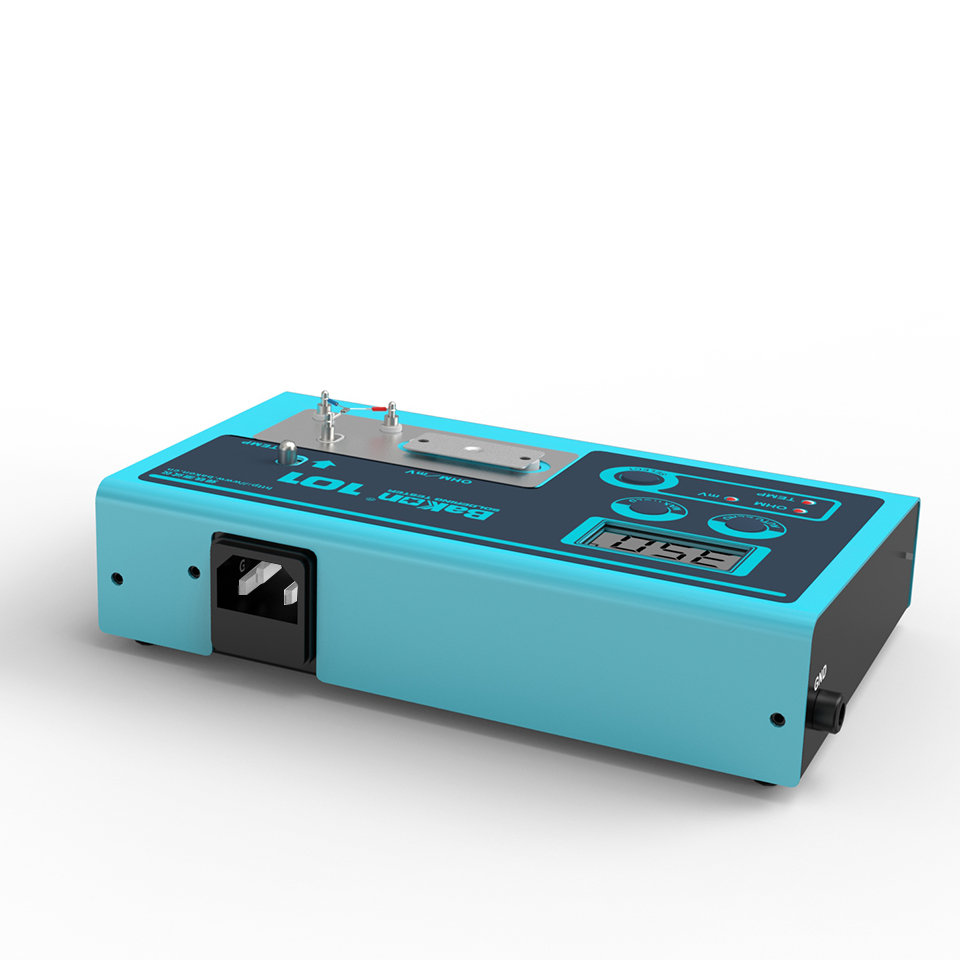

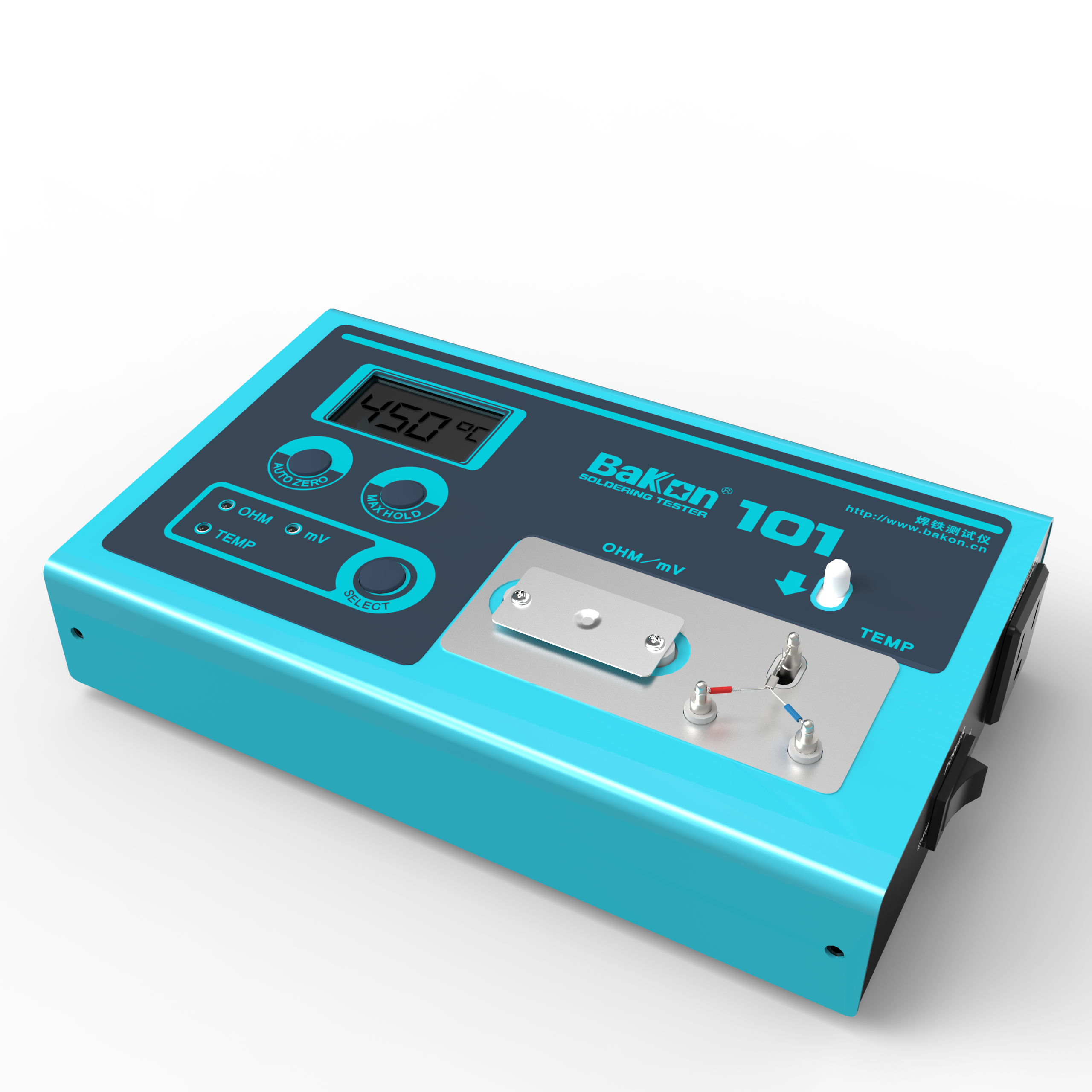

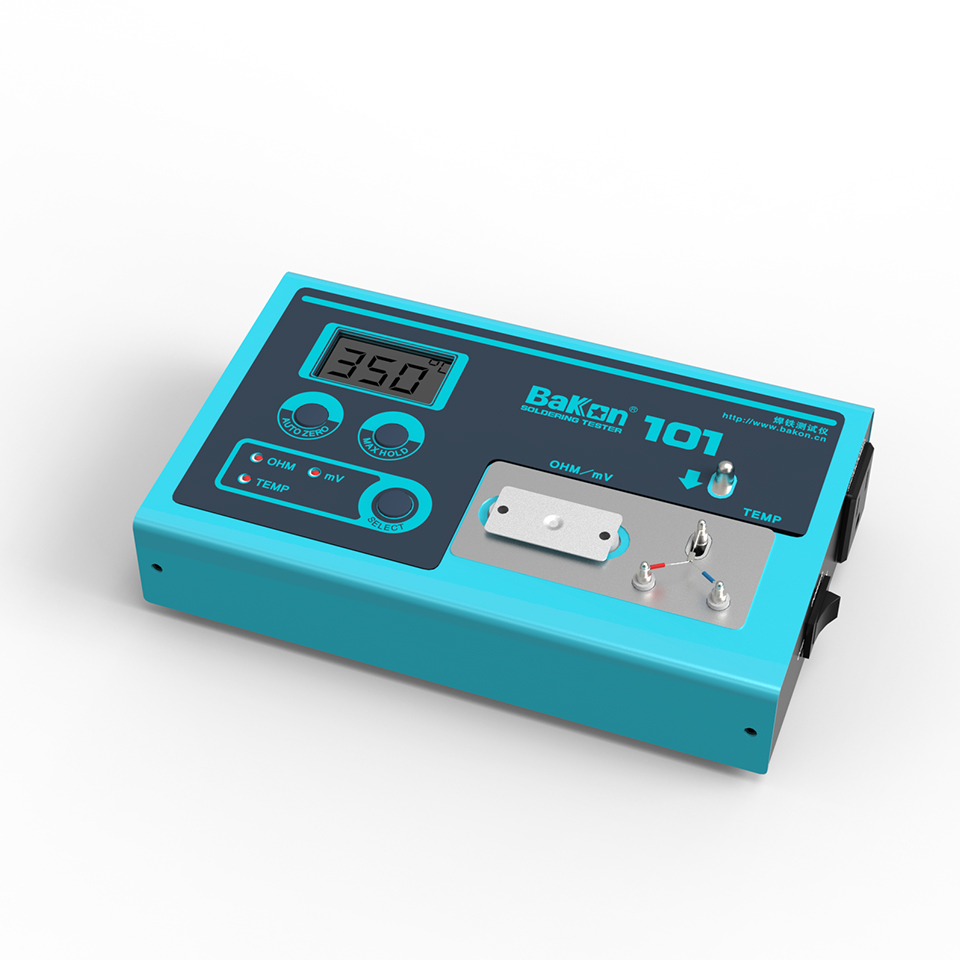

Soldering iron thermometer BK101

  • Place of Origin: Guangdong, China
  • Brand Name: BAKON
  • Resolution of Temp.: 1℃
  • Measurement Range: 0℃~700℃
  • Precision: +/- 3℃(between 300℃ ~ 600℃)
  • Resolution of voltage: 0.1mV
  • Resolution of resistance: 0.1Ω
Quantity:
Product Description

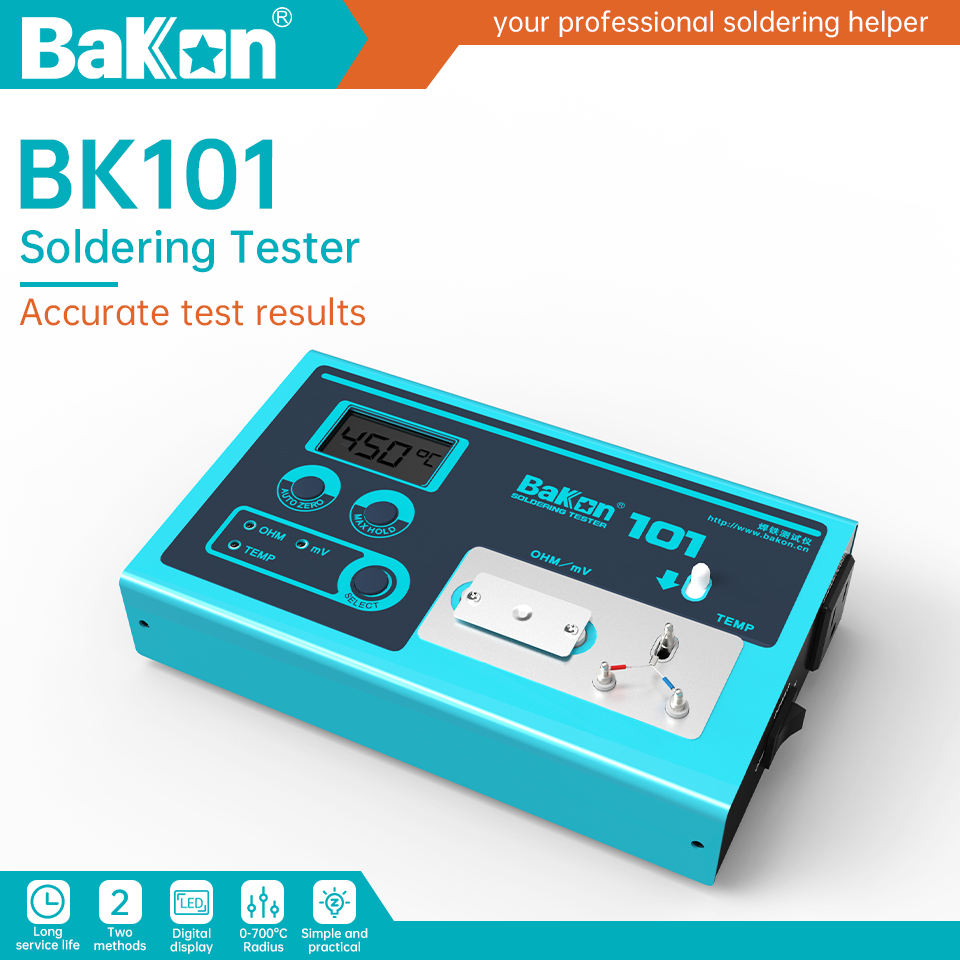

Soldering iron thermometer BK101

Performance :

♦ Soldering irons can be measured based on the MIL-HDBK-263B standard. (When measuring the leak voltage and ground resistance).

♦ Soldering irons can be measured based on the IPC J-STD. (When measuring the ground resistance).

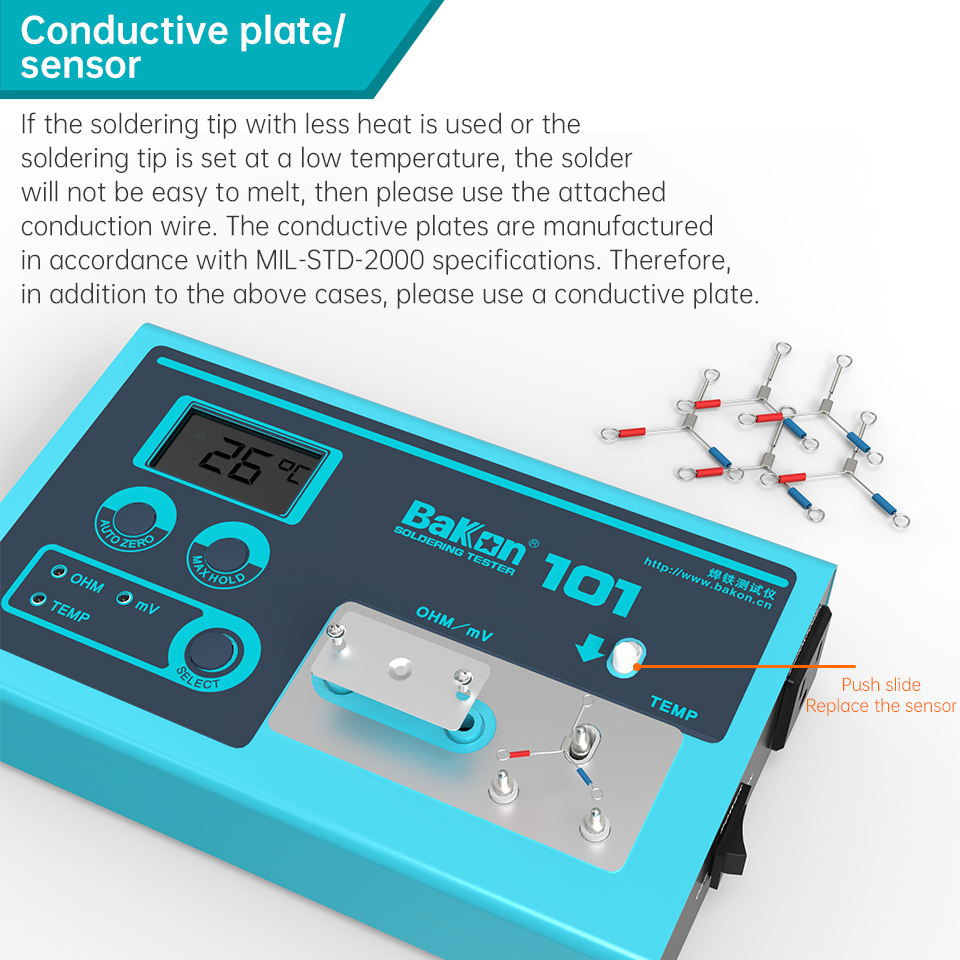

♦ Suitable for lead-free solder. (Sensor applicable to lead-free solder has a special coating of wax).

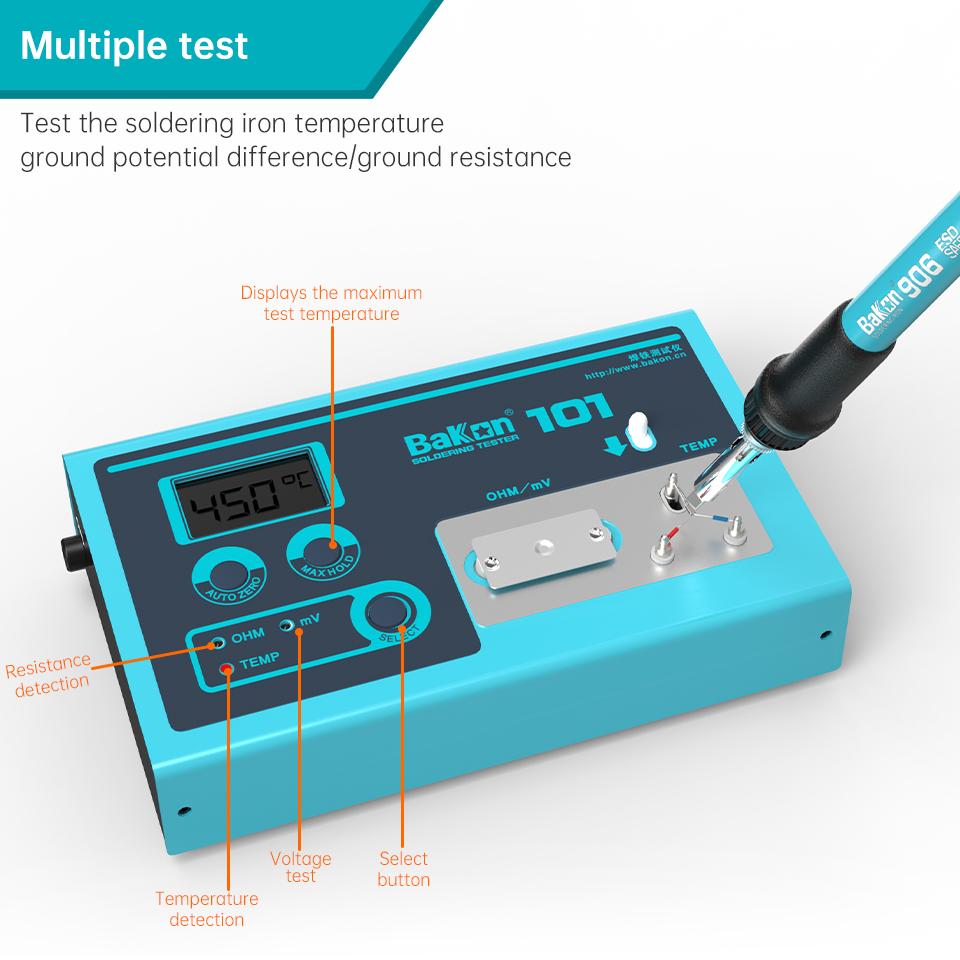

♦ MAX HOLD function. The maximum value can be displayed when ""MAX HOLD"" button pressed).

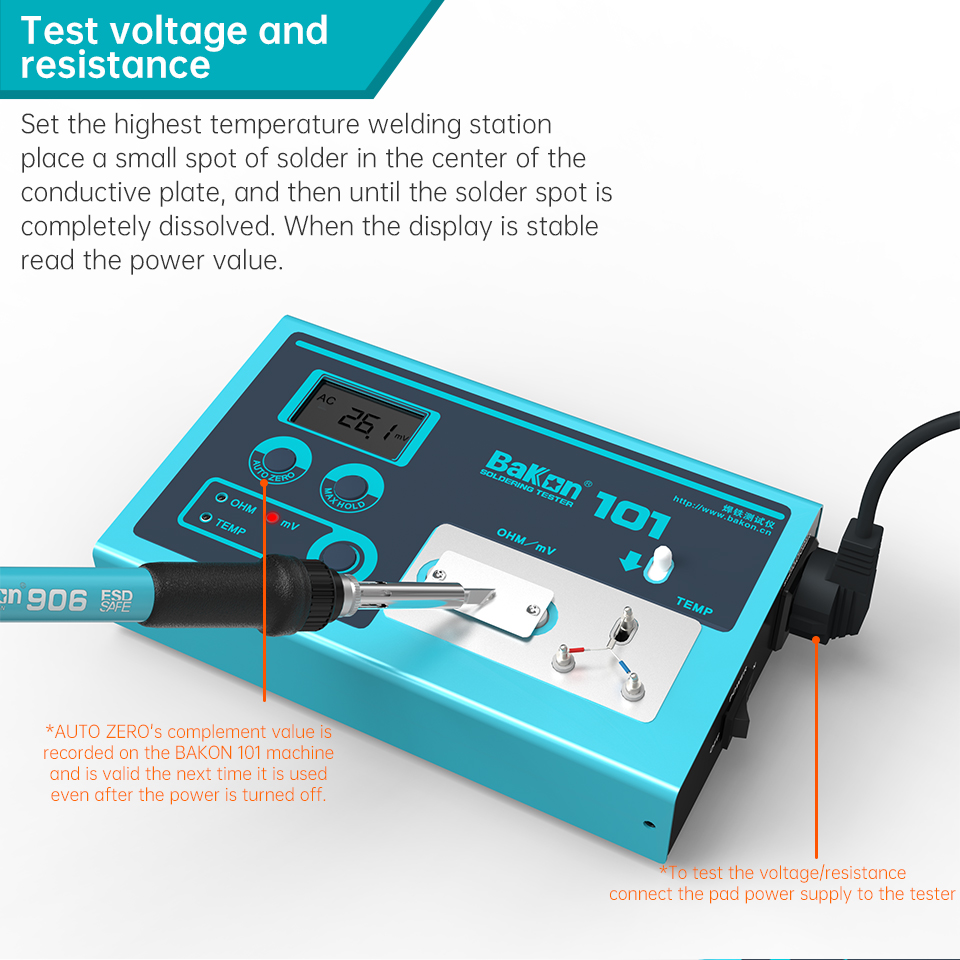

♦ Leak voltage and ground resistance can be easily measured. (Since automatic self-correction of zero point is provided internally).

Technical Data

Temperature
Resolution 1oC
Measurement Range 0oC ~ 700oC
Precision +/- 3oC (in 300oC ~ 600oC range)
Applied Sensor K (CA) type thermocouple)
Voltage
Resolution 0.1mV
Measurement Range 0 ~ 40mV (AC)
Precision +/- (5% of reading + 1 digit)
Resistance
Resolution 0.1Ω
Measurement Range 0 ~ 40 Ω
Precision +/- (5% of reading + 1 digit)
Display

Why choose BAKON?

1.We are most professional manufacturer of soldering station and ESD products.

2.Our company has passed ISO9001.

3.with more than19 years experience, cooperate with Gree Electric since 2012.

4.Have global users in many countries such as Korea,Vietnam,India,Mexico and Brazil etc.

5.High quality & competitive price.

6.Most products have CE certificates.

7.100% NEW from BAKON factory.

8.100% QC inspect before shipment.

9.OEM is acceptable.

Company Information

About Bakon

In 1998, Shenzhen Bakon Electronic Technology Co., Ltd. was established at Shenzhen, and it is committed to the overall solution of static control, automation lean production, lead-free welding with its BAKON and SBK brand.

Bakon insists on "technology-based, make the world brand", and pursues "soldering tools expert" in the world.

In 2012, Bakon becomes the supplier of GREE ELECTRIC, which is the biggest Air condition producer in the world. At the same time, we cooperate with BYD auto and many famous companies such as Foxconn, Apple's single-largest contractor, and so on.

In 2015, Bakon was identified as one Shenzhen High Technology Enterprise by Shenzhen Government.

Bakon now has more than 20 people of research and development team, including 6 electronic engineers, 2 software engineers and 6 automation engineers. Over the years, Bakon adhere consistently engaged to research of auto high power soldering station. In 2016, we launched model BK990 auto big power lead-free soldering station with measurement function of resistance and voltage.

The Smart ESD Control System, Network ESD Control System and Antistatic Online Control and Test System, which are Independent research and development products of Bakon, provide excellent solutions to ESD control of production lines, while there are more smart production lines and Carrying out of “Industry 4.0 strategy”. Specially, the Smart ESD Control System is applied to famous factories such as Gree Electric, BYD Auto, Hisense and so on.

Bakon's now No.2 in the domestic market and is known well in China, there is also more than 50% increasing in export amount each year. It’s sold to more and more countries, such as America, India, South Korea and so on.

Now, BAKON is approaching its goal step by step and is going to be listed in the followings years. We can foresee the future of Bakon will be amazing.

Certifications

Warranty

All products purchased in BAKON are tested and guaranteed to keep in good quality with one year warranty except waring parts such as: iron heater, gunheater, iron tips.

If quality problems happen in the guarantee period, our company provides technical supports and fittings.Our local distributor, if there is one, will help to solve your problems timely after receiving telephone or emails.

Welcome to contact us at any time if any quetsions about using our products.

Kind Note: Bakon is free of responsibility to personal injuries or property damages caused by improper operation.
